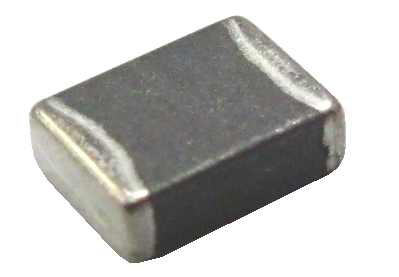

BKPA

Series Pdf


Closed Magnetic Circuit Type
Multilayer Processing Inductor for Power line

SeriesDimensions L*W*T(mm)Inductance(uH)Tolerance(±%)Rated Current(A)
BKPA_2012102*1.25*11~4.720,300.6~1.1
BKPA_2520102.5*2*11~4.720,30,400.9~1.2

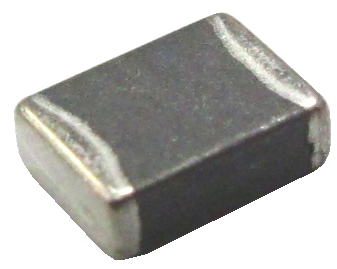

BKPB

Series Pdf


Closed Magnetic Circuit Type
Multilayer Processing Inductor for Power line
Low DC Resistance

SeriesDimensions L*W*T(mm)Inductance(uH)Tolerance(±%)Rated Current(A)
BKPB_1608DZ1.6*0.8*0.80.47~4.720,300.08~0.4
BKPB_2012102*1.25*10.47~4.720,300.2~1.1
BKPB_2012C52*1.25*0.950.022~0.04710,201.6~2
BKPB_2016102*1.6*10.47~4.720,300.2~1.2
BKPB_2520102.5*2*10.47~4.720,300.3~1.5
BKPB_2520122.5*2*1.20.47~4.720,300.35~1.5

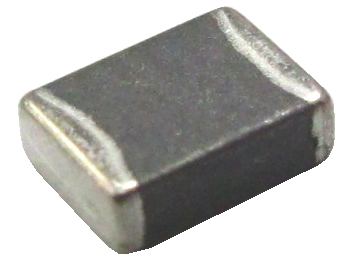

BKPE

Series Pdf


Closed Magnetic Circuit Type
Multilayer Processing Inductor for Power line
Low DC Resistance & Higher Saturation Current

SeriesDimensions L*W*T(mm)Inductance(uH)Tolerance(±%)Rated Current(A)
BKPE_1608DZ1.6*0.8*0.81~2.220,300.3~0.5
BKPE_1608FZ1.6*0.8*0.62.220,300.25
BKPE_2012102*1.25*10.24~2.220,300.5~2.2
BKPE_2016102*1.6*10.24~2.220,301~3.5
BKPE_2520102.5*2*10.24~2.220,301.4~4.1

BDUE

Series Pdf


Closed Magnetic Circuit Type
Molding Processing & for Ultra High Current

SeriesDimensions L*W*T(mm)Inductance(uH)Tolerance(±%)Rated Current(A)
BDUE_2012082*1.25*0.80.47203
BDUE_2016102*1.6*10.47~1202.7~3.1
BDUE_2520102.5*2*10.47~1204~4.2
BDUE_2520122.5*2*1.20.47~1.5202.7~4.5

BDHE

Series Pdf


Closed Magnetic Circuit Type
Molding Processing & for Ultra High Current

SeriesDimensions L*W*T(mm)Inductance(uH)Tolerance(±%)Rated Current(A)
BDHE_1608081.6*0.8*0.80.47~1201.5~1.6
BDHE_2012082*1.25*0.80.24~0.47203~4.2
BDHE_2012102*1.25*10.24~2.220,301.4~3.7
BDHE_2016082*1.6*0.80.47~1202.3~3.1
BDHE_2016102*1.6*10.24~2.2201.8~3.9
BDHE_2016122*1.6*1.21~1.2202.7~3
BDHE_2520102.5*2*10.24~2.2202.2~5.5
BDHE_2520122.5*2*1.20.24~2.2202.5~6.2
BDHE_3225103.2*2.5*10.24~2.2202.5~6
BDHE_3225123.2*2.5*1.20.47~2.2202.7~4.6
BDHE_3225253.2*2.5*2.51~2.2203~3.5

BDHH

Series Pdf


Closed Magnetic Circuit Type
Molding Processing & for Ultra High Current

SeriesDimensions L*W*T(mm)Inductance(uH)Tolerance(±%)Rated Current(A)
BDHH_2012082*1.25*0.80.47203.5
BDHH_2016082*1.6*0.80.47204
BDHH_2520102.5*2*11204.2

BDHL

Series Pdf

Closed Magnetic Circuit Type
Molding Processing & for Ultra High Current

SeriesDimensions L*W*T(mm)Inductance(uH)Tolerance(±%)Rated Current(A)
BDHL_2016102*1.6*10.24~2.2201.8~3.9
BDHL_2520102.5*2*10.24~2.2202.2~5.5
BDHL_2520122.5*2*1.20.24~2.2202.5~6.2

BDCL

Series Pdf

Closed Magnetic Circuit Type
Molding Processing & for Ultra High Current

SeriesDimensions L*W*T(mm)Inductance(uH)Tolerance(±%)Rated Current(A)
BDCL_201610-L12*1.6*10.24~2.2201.5~3.8
BDCL_201610-S12*1.6*10.24~2.2201.3~4
BDCL_201612-S12*1.6*1.20.24~2.2201.3~4.2
BDCL_252010-L12.5*2*10.33~2.2201.8~3.8
BDCL_252010-S12.5*2*10.24~2.2201.4~4.5
BDCL_252012-L12.5*2*1.20.47~2.2202.2~4.1
BDCL_252012-S12.5*2*1.20.33~2.2202~4

BMCA

Series Pdf

Closed Magnetic Circuit Type
Molding Processing & for Ultra High Current

SeriesDimensions L*W*T(mm)Inductance(uH)Tolerance(±%)Rated Current(A)
BMCA_050512NEW5.2*5.4*1.24.7202
BMCA_0606306.6*6.95*2.80.1~10203~32.5
BMCA_10104010.2*11.6*3.81~4.7209.5~18

BMRA

Series Pdf

Closed Magnetic Circuit Type
Molding Processing & for Ultra High Current

SeriesDimensions L*W*T(mm)Inductance(uH)Tolerance(±%)Rated Current(A)
BMRA_0404124.1*4.6*1.20.22~4.7201.8~8.5
BMRA_0404154.1*4.6*1.51~4.7202~4
BMRA_0404204.1*4.6*20.1~10201.6~12
BMRA_050512NEW5.2*5.4*1.24.7~6.8201.85~2
BMRA_0505155.4*5.7*1.50.47~10201.5~8
BMRA_0505205.4*5.7*1.80.47~10202.3~10.5
BMRA_0505305.4*5.7*30.2~10202.5~14.5
BMRA_0606156.6*7.3*1.32.2~6.8202.5~3.5
BMRA_0606306.6*7.3*30.1~33202~37

BMRB

Series Pdf

Closed Magnetic Circuit Type
Molding Processing & for Ultra High Current

SeriesDimensions L*W*T(mm)Inductance(uH)Tolerance(±%)Rated Current(A)
BMRB_040412NEW4.1*4.6*1.24.7~8.2201.3~1.8
BMRB_050512NEW5.4*5.7*1.21~6.8202~5
BMRB_0505155.4*5.7*1.51~10202~6.5
BMRB_0505185.4*5.7*1.80.47~10202.5~10.5
BMRB_050518-B15.2*5.4*1.60.47~1.5206.2~10.5
BMRB_0606126.6*7.3*1.24.7~6.8202.2~2.5
BMRB_0606156.6*7.3*1.31~10202~5.5
BMRB_0606186.6*7.3*1.60.22~10202.3~14
BMRB_0606246.6*7.3*2.40.22~15202.5~21
BMRB_0606306.6*7.3*30.1~10204~32.5
BMRB_0606506.6*7.3*50.56~4.7206.5~20

BMRF

Series Pdf

Closed Magnetic Circuit Type
Molding Processing & for Ultra High Current

SeriesDimensions L*W*T(mm)Inductance(uH)Tolerance(±%)Rated Current(A)
BMRF_0606306.6*7.3*38.2~10204~4.5
BMRF_13135012.6*13.8*50.47~10207~37
BMRF_131360NEW12.6*13.8*5.88.2~100202.7~10
BMRF_10104010.1*11.6*40.22~22204.5~35
BMRF_171770NEW17.15*17.15*6.88.2~68204.7~15

BMRG

Series Pdf

Closed Magnetic Circuit Type
Molding Processing & for Ultra High Current

SeriesDimensions L*W*T(mm)Inductance(uH)Tolerance(±%)Rated Current(A)
BMRG_10103010.1*11.6*30.33~3.3209~23
BMRG_13136012.6*13.8*610~33204~10

BMQA

Series Pdf

Closed Magnetic Circuit Type
Molding Processing & for Ultra High Current

SeriesDimensions L*W*T(mm)Inductance(uH)Tolerance(±%)Rated Current(A)
BMQA_0404204.2*4.8*1.80.22~4.7202.5~10
BMQA_0505305.5*5.85*2.80.22~4.7204.5~18
BMQA_0606206.8*6.95*1.84.7204.2
BMQA_0606306.8*7.3*2.80.22~10204.8~25
BMQA_10104010.2*11.3*3.80.22~10208~40

BMQE

Series Pdf

Closed Magnetic Circuit Type
Molding Processing & for Ultra High Current

SeriesDimensions L*W*T(mm)Inductance(uH)Tolerance(±%)Rated Current(A)
BMQE_0404104.1*4.6*10.33~1204~6
BMQE_0404114.1*4.6*1.11~2.2203~4.3
BMQE_0505115.5*5.7*1.11204.8
BMQE_0606116.6*6.95*1.11~2.2204.2~6.8

BMMA

Series Pdf

Closed Magnetic Circuit Type
Molding Processing & for Ultra High Current

SeriesDimensions L*W*T(mm)Inductance(uH)Tolerance(±%)Rated Current(A)
BMMA_0404124.06*4.45*1.20.047~1204~13
BMMA_040420NEW4.06*4.45*20.1~4.7202.2~16
BMMA_0505125.18*5.49*1.21~3.3202.8~4.4
BMMA_0505185.18*5.49*1.81~10202.5~8
BMMA_0505205.18*5.49*20.1~10202.3~17
BMMA_0505305.18*5.49*30.1~15201.9~23
BMMA_0606186.47*6.86*1.80.1~6.8202.8~18
BMMA_0606246.47*6.86*2.40.1~10203~30
BMMA_0606306.47*6.86*30.1~10203~32.5
BMMA_0606406.6*6.95*40.36~3.3207~23
BMMA_0606506.6*6.95*50.22~10204.5~30
BMMA_0808308.1*8.3*30.22~4.7206.6~32
BMMA_0808408.1*8.3*40.22~4.7207.25~30.7
BMMA_10101510*11.5*1.51.5~2.2205~7
BMMA_10103010*11.5*30.22~10205~30
BMMA_101040NEW10*11.5*40.15~10206~40
BMMA_10104510*11.5*4.52.2~6.8207.5~14
BMMA_10105010*11.5*50.472036
BMMA_13133512.9*13.2*3.50.15~10207~41
BMMA_13135012.9*13.2*50.1~10209~55
BMMA_13136412.9*13.2*6.40.22~102010~53
BMMA_17177017.2*17.6*71~6.82019~48

BMME

Series Pdf

Closed Magnetic Circuit Type
Molding Processing & for Ultra High Current

SeriesDimensions L*W*T(mm)Inductance(uH)Tolerance(±%)Rated Current(A)
BMME_040412NEW4.06*4.45*1.20.47~6.8201.5~8.5
BMME_0505125.18*5.49*1.21.5204.3
BMME_0505304.7*5.3*34.7204.8
BMME_0606186.6*6.95*1.80.15~1.5206.5~21
BMME_060630NEW6.47*6.86*312014
BMME_080850NEW8.1*8.3*50.222040
BMME_10102010*11.5*21.5~2.2208.5~9.5

BMMI

Series Pdf

Closed Magnetic Circuit Type
Molding Processing & for Ultra High Current

SeriesDimensions L*W*T(mm)Inductance(uH)Tolerance(±%)Rated Current(A)
BMMI_0404124.06*4.45*1.24.7202.1
BMMI_0505155.18*5.49*1.51205.8
BMMI_0606126.6*6.95*1.21206
BMMI_0606306.6*6.95*30.3~4.7206~25.5
BMMI_13135012.9*13.2*53.32015
BMMI_13136512.9*13.2*6.53.32020

BMMN

Series Pdf

Closed Magnetic Circuit Type
Molding Processing & for Ultra High Current

SeriesDimensions L*W*T(mm)Inductance(uH)Tolerance(±%)Rated Current(A)
BMMN_0404124.06*4.45*1.21~2.2202.75~4.2
BMMN_0404204.06*4.45*21.5204
BMMN_0505125.18*5.49*1.20.68~2.2203.5~6
BMMN_0505155.18*5.49*1.51~10202~6.5
BMMN_0505185.18*5.49*1.80.47~10202.5~10.5
BMMN_0505304.7*5.3*36.8203
BMMN_0606156.47*6.86*1.50.56~3.3203.3~9
BMMN_0606186.6*7.4*1.80.182017
BMMN_0606306.6*6.95*31~4.7205.5~11.2
BMMN_10102010*11.5*212011
BMMN_10103010*11.5*31.2~22203~9.5
BMMN_10104010*11.5*42.2~47203.3~11
BMMN_13135012.9*13.2*50.82~3.32014~28
BMMN_13136012.6*14.2*610~18205~10
BMMN_13136512.6*13.2*6.512028
BMMN_17177017.2*17.6*72.2~102014~30

BMMS

Series Pdf

Closed Magnetic Circuit Type
Molding Processing & for Ultra High Current

SeriesDimensions L*W*T(mm)Inductance(uH)Tolerance(±%)Rated Current(A)
BMMS_0404124.06*4.45*1.20.68~4.7201.8~4.5
BMMS_0606306.6*6.95*30.47~6.8204.5~18
BMMS_10104010*11.5*48.2206
BMMS_13136012.6*14.2*612~47203.5~7

BMNI

Series Pdf

Closed Magnetic Circuit Type
Molding Processing & for Ultra High Current

SeriesDimensions L*W*T(mm)Inductance(uH)Tolerance(±%)Rated Current(A)
BMNI_040412NEW4.1*4.1*14.7202.2
BMNI_0404214*4*2.11~2.2205.5~8.7
BMNI_040431NEW4*4*3.11~6.8203.6~9
BMNI_060631NEW6.36*6.56*3.11.5~3.3208~14
BMNI_060632NEW6.36*6.56*3.20.15~12016~33.3

BWMR

Series Pdf

Closed Magnetic Circuit Type - Automatic Assembly

SeriesDimensions L*W*T(mm)Inductance(uH)Tolerance(±%)Rated Current(A)
BWMR_2016102*1.6*14.7~2220,300.4~0.86
BWMR_2016122*1.6*1.24.7~2220,300.41~1
BWMR_2520102.5*2*11.5~2220,300.45~1.8
BWMR_2520122.5*2*1.22.2~2220,300.54~1.9
BWMR_3027123*2.7*1.21~2220,300.63~2.7

BWVC

Series Pdf

Closed Magnetic Circuit Type - Automatic Assembly

SeriesDimensions L*W*T(mm)Inductance(uH)Tolerance(±%)Rated Current(A)
BWVC_2016102*1.6*10.24~2220,300.34~2.7
BWVC_2016122*1.6*1.20.5~2220,300.36~2.07
BWVC_2520122.5*2*1.20.6820,302.34
BWVC_4040184*4*1.91.2~2220,300.79~3.2
BWVC_5050405*5*41~22020,300.45~5.31
BWVC_6060286*6*2.83.3~2220,301.48~3.6
BWVC_6060456*6*4.51~15020,300.58~6.57

BWVF

Series Pdf

Closed Magnetic Circuit Type - Automatic Assembly

SeriesDimensions L*W*T(mm)Inductance(uH)Tolerance(±%)Rated Current(A)
BWVF_2016122*1.6*1.20.47~6.820,300.7~2.07
BWVF_2520102.5*2*1.020.47~2220,300.36~2.07
BWVF_2520122.5*2*1.20.5~2220,300.47~2.7
BWVF_3030103*3*1.021.5~4720,300.25~1.53
BWVF_3030123*3*1.22.2~4720,300.38~1.8
BWVF_3030153*3*1.50.47~10020,300.27~3.6
BWVF_4040124*4*1.23.3~1020,300.81~1.36
BWVF_4040154*4*1.50.47~2220,300.64~3.6
BWVF_4040184*4*1.90.56~2220,300.79~3.6
BWVF_4040264*4*2.61~33020,300.22~3.6
BWVF_5050205*5*21~2220,300.9~3.69
BWVF_6060206*6*24.7~4720,300.72~2.07
BWVF_6060286*6*2.81~6.820,302.7~5.67
BWVF_8080408*8*44.7~2220,302.43~4.95

BWVH

Series Pdf

Closed Magnetic Circuit Type - Automatic Assembly

SeriesDimensions L*W*T(mm)Inductance(uH)Tolerance(±%)Rated Current(A)
BWVH_201610-H12*1.6*1.020.24~1020,300.38~2.1
BWVH_252010-H12.5*2*10.24~1020,300.49~3
BWVH_252012-H12.5*2*1.20.47~1020,300.68~2.6
BWVH_2520122.5*2*1.20.24~4720,300.3~3.2
BWVH_5956105.9*5.6*11.5~2220,300.62~1.9

BWVS

Series Pdf

Closed Magnetic Circuit Type - Automatic Assembly

SeriesDimensions L*W*T(mm)Inductance(uH)Tolerance(±%)Rated Current(A)
BWVS_4040124*4*1.21~4720,300.31~1.53
BWVS_4040184*4*1.81~22020,300.2~2.52
BWVS_4040264*4*2.61.2~2220,300.77~2.97
BWVS_5050205*5*21~4720,300.58~3.6
BWVS_5050405*5*41~10020,300.5~4.14
BWVS_6060206*6*20.5~2220,300.99~4.77
BWVS_6060286*6*2.81~10020,300.72~4.68
BWVS_6060456*6*4.51~100020,300.19~5.85
BWVS_606045-L16*6*4.50.5~10020,300.82~7.2
BWVS_8080408*8*40.9~82020,300.34~7.24
BWVS_808040-L18*8*41~2220,301.8~7.65

BWVT

Series Pdf

Closed Magnetic Circuit Type - Automatic Assembly

SeriesDimensions L*W*T(mm)Inductance(uH)Tolerance(±%)Rated Current(A)
BWVT_2016102*1.6*10.4720,302.16
BWVT_2520102.5*2*1.020.68~6.820,300.7~1.98
BWVT_2520122.5*2*1.20.4720,302.79
BWVT_3030103*3*1.021~3.320,300.99~2.07
BWVT_3030123*3*1.20.47~1.520,302.34~3.6
BWVT_4040124*4*1.20.5~2220,300.55~3.15
BWVT_4040154*4*1.51~3.320,301.8~3.24
BWVT_4040264*4*2.60.47~0.520,304.32
BWVT_5050205*5*20.47~3.320,302.43~5
BWVT_6060206*6*21~6.820,301.71~3.78
BWVT_8080408*8*41~6.820,304.41~7.29

BWVN

Series Pdf

Open Magnetic Circuit Type- Automatic Assembly

SeriesDimensions L*W*T(mm)Inductance(uH)Tolerance(±%)Rated Current(A)
BWVN_322515NEW3.2*2.5*1.50.47~4720,300.24~2.55

BPNR

Send Enquiry

Closed Magnetic Circuit Type - Automatic Assembly

SeriesDimensions L*W*T(mm)Inductance(uH)Tolerance(±%)Rated Current(A)
BPNR_0505455*5*4.52.2404.3

BPCA

Series Pdf

Ferrite SMD Shielded Type & Ultra High Current

SeriesDimensions L*W*T(mm)Inductance(uH)Tolerance(±%)Rated Current(A)
BPCA_0606456*6.3*4.51~47020,300.25~4.8
BPCA_0707457*7.4*4.51~47020,300.37~6.5

BPSF

Series Pdf

Ferrite SMD Shielded Type

SeriesDimensions L*W*T(mm)Inductance(uH)Tolerance(±%)Rated Current(A)
BPSF_0606286*6*2.84.7~100200.42~1.6
BPSF_0707287*7*2.82.2~47200.54~2.4
BPSF_0707307*7*33.3~100200.35~1.8
BPSF_0707327*7*3.22.2~1000200.13~2.1
BPSF_0707457*7*4.53.3~1000200.14~2.3
BPSF_0707557*7*5.51.5~4720,300.8~4
BPSF_10104510.1*10.1*4.54.7~150020,300.22~4.5
BPSF_10105810.1*10.1*5.810~33202.1~3
BPSF_13135512.5*12.5*5.56~1500200.29~3.6
BPSF_13136512.5*12.5*6.52~22020,301~6.2
BPSF_13137512.5*12.5*7.51.2~33020,300.9~8.2

BPCF

Series Pdf

Ferrite SMD Shielded Type

SeriesDimensions L*W*T(mm)Inductance(uH)Tolerance(±%)Rated Current(A)
BPCF_0404183.85*3.85*1.82.2~10020,300.18~1.5
BPCF_0505205.3*5.3*21.2~10020,300.23~2.15
BPCF_0505305.3*5.3*31.1~33020,300.19~3.87
BPCF_0606256*6*2.52.2~10020,300.33~1.7
BPCF_0606286*6*2.84.7~15020,300.34~1.6
BPCF_0707287*7*2.83.3~4720,300.54~1.6
BPCF_0707327*7*3.21.5~100010,20,300.13~3.4
BPCF_0707457*7*4.51~100010,20,300.14~4.5
BPCF_0707557*7*5.51.5~6820,300.9~4
BPCF_10104510*10*4.51.5~150020,300.22~6
BPCF_10106510*10*6.57.2~2220,303.41~5
BPCF_13135512.5*12.5*5.56~150010,20,300.29~3.6
BPCF_13136512.5*12.5*6.52~100020,300.3~6.2
BPCF_13137512.5*12.5*7.51.2~22020,301.3~8.2

BPSA

Series Pdf

Ferrite SMD Shielded Type

SeriesDimensions L*W*T(mm)Inductance(uH)Tolerance(±%)Rated Current(A)
BPSA_0606306.3*6.3*36.8~220200.26~1.5
BPSA_0707487.3*7.3*4.83.3~680200.2~2.3
BPSA_0707587.3*7.3*5.81.5~2220,301.7~4
BPSA_13135812.5*12.5*5.86~150020,300.29~3.6

BPSC

Series Pdf

Ferrite SMD Shielded Type

SeriesDimensions L*W*T(mm)Inductance(uH)Tolerance(±%)Rated Current(A)
BPSC_0303123.2*3.2*1.21.5~2220,300.18~0.72
BPSC_0303163.2*3.2*1.550.47~1220,300.52~2
BPSC_030320-LD3.2*3.2*22.2~4720,300.19~0.85
BPSC_030320-HP3.2*3.2*21.5~2220,300.5~1.9
BPSC_040412-HP4*4*1.20.6~2220,300.33~1.8
BPSC_0404124*4*1.22.7~3920,300.14~0.53
BPSC_040418-S14*4*1.81~10020,300.13~1.6
BPSC_040418-S04*4*1.81~6820,300.16~1.35
BPSC_040430-LD4*4*310~220300.116~0.5
BPSC_0404304*4*31~47300.48~2.5
BPSC_0505204.7*4.7*21~10020,300.2~1.72
BPSC_0505304.7*4.7*31.2~68020,300.1~2.56
BPSC_0505404.7*4.7*42.2~2220,301~3.5
BPSC_0606205.7*5.7*21~10020,300.25~2.8
BPSC_0606305.7*5.7*31~56020,300.1~3.5
BPSC_0707306.7*6.7*31~22020,300.27~3.5
BPSC_0707347.3*7.3*3.41.5~1000200.16~4
BPSC_0707407*7*42.2~56020,300.2~3.8
BPSC_0707457.3*7.3*4.51.5~1000200.18~5
BPSC_0808458.3*8.3*4.53.3~100201.1~5.7
BPSC_10113110.3*10.5*3.14.7~4720,301.43~4.65
BPSC_10114010.3*10.5*41.5~56020,30,400.5~8.5
BPSC_10115110.3*10.5*5.10.8~100020,300.4~10.8
BPSC_13134512.5*12.5*4.53.3~33020,300.5~8.8
BPSC_13136012.5*12.5*63.3~100020,300.45~8
BPSC_13138012.5*12.5*81.5~100020,30,400.73~21.6

BPDC

Series Pdf

Ferrite SMD Shielded Type

SeriesDimensions L*W*T(mm)Inductance(uH)Tolerance(±%)Rated Current(A)
BPDC_0303103*3*11.2~2720,300.16~0.83
BPDC_0505205.1*5.1*21.1~10020,300.25~2.4
BPDC_0505305.1*5.1*31.1~10020,300.4~3.8

BPDH

Series Pdf

Ferrite SMD Shielded Type

SeriesDimensions L*W*T(mm)Inductance(uH)Tolerance(±%)Rated Current(A)
BPDH_0303123*3*1.21.5~3320,300.25~1.35
BPDH_0303203*3*21.3~4720,300.4~1.9
BPDH_0404123.8*3.8*1.20.6~2220,300.33~1.8
BPDH_0404153.8*3.8*1.51.5~2220,25,300.48~1.85
BPDH_0404183.8*3.8*1.81~56020,300.09~2.5
BPDH_0606185.6*5.6*1.80.9~2220,300.8~4.7
BPDH_0707306.7*6.7*34.7~3320,301.1~3.5

BPDL

Series Pdf

Ferrite SMD Shielded Type

SeriesDimensions L*W*T(mm)Inductance(uH)Tolerance(±%)Rated Current(A)
BPDL_0303123*3*1.21.5~3320,300.22~0.9
BPDL_0303203*3*22.2~4720,300.2~0.85
BPDL_0404153.8*3.8*1.51.2~4720,300.25~1.5
BPDL_0404183.8*3.8*1.81.2~56020,300.07~1.5

BPDN

Series Pdf

Ferrite SMD Shielded Type

SeriesDimensions L*W*T(mm)Inductance(uH)Tolerance(±%)Rated Current(A)
BPDN_0404153.8*3.8*1.52.2~4.725,300.96~1.6
BPDN_0404233.8*3.8*2.31~4720,250.35~2.8
BPDN_0404303.8*3.8*31~47300.48~3.7

BPDR

Series Pdf

Ferrite SMD Shielded Type

SeriesDimensions L*W*T(mm)Inductance(uH)Tolerance(±%)Rated Current(A)
BPDR_0404163.8*3.8*1.62.2~22020,300.15~1.2
BPDR_0505204.7*4.7*21~22020,300.15~1.72
BPDR_0505304.7*4.7*31~27010,20,300.16~2.56
BPDR_0606205.7*5.7*24.1~10010,20,300.36~1.95
BPDR_0606305.7*5.7*31~22020,300.28~3.7
BPDR_0606555.7*5.7*5.51.5~10020,300.65~5.5
BPDR_0707306.7*6.7*31.2~15020,300.4~4.5
BPDR_0707406.7*6.7*41~33010,20,300.35~4.5
BPDR_0808308*8*32.5~10020,300.75~4.5
BPDR_0808408*8*41.8~10020,300.88~6.8
BPDR_0808458*8*4.51~22020,300.6~6.2

BPDS

Series Pdf

Ferrite SMD Shielded Type

SeriesDimensions L*W*T(mm)Inductance(uH)Tolerance(±%)Rated Current(A)
BPDS_0303163*3*1.551.5~10020,25,300.12~1.8

BPCI

Series Pdf

Ferrite SMD Shielded Type

SeriesDimensions L*W*T(mm)Inductance(uH)Tolerance(±%)Rated Current(A)
BPCI_0707467.3*7.3*4.60.33~100020,300.18~8.5
BPCI_10104010.3*10.3*41~33020,300.6~12
BPCI_12125012*12*53~33020,300.5~7
BPCI_12126012*12*62.2~220010,20,300.4~12.5
BPCI_12128012*12*81~1000010,20,300.15~15
BPCI_12121012*12*101~330020,300.3~11.6

BPRR

Series Pdf

Ferrite SMD Shielded Type

SeriesDimensions L*W*T(mm)Inductance(uH)Tolerance(±%)Rated Current(A)
BPRR_10103110*10*3.10.82~22010,20,300.49~7
BPRR_10104110*10*4.11~47010,20,300.48~8.8
BPRR_10105110*10*5.11~100010,20,300.42~15

BPXX

Series Pdf

Ferrite SMD Shielded Type

SeriesDimensions L*W*T(mm)Inductance(uH)Tolerance(±%)Rated Current(A)
BPXX_0303083*3*0.81~3320,300.26~1.3
BPXX_0303103*3*10.47~4720,300.24~2.3
BPXX_0303123*3*1.20.47~2220,300.4~2.5
BPXX_0303153*3*1.51~47020,300.11~2
BPXX_0303203*3*21~4720,300.5~2.5
BPXX_0404124*4*1.20.33~4720,300.38~3.7
BPXX_0404184*4*1.80.56~150020,300.08~2.8
BPXX_0404204*4*21.8~56020,300.12~1.97
BPXX_0404304*4*31~220020,300.09~2.8
BPXX_0505155*5*1.51~100020,300.08~2.65
BPXX_0505205*5*20.3~33020,300.22~6
BPXX_0505305*5*31.2~220020,300.08~2.65
BPXX_0606206*6*21.2~10020,300.45~3
BPXX_0606256*6*2.51~100020,300.15~1.8
BPXX_0606306*6*31~4720,301~4.2
BPXX_0606356*6*3.510~1000020,300.05~1.8

BPSS

Series Pdf

Ferrite SMD Shielded Type

SeriesDimensions L*W*T(mm)Inductance(uH)Tolerance(±%)Rated Current(A)
BPSS_0505225.2*5*2.21.2~3320,300.77~3.43
BPSS_0807257.5*7.4*2.51~4720,300.95~6.22
BPSS_0807407.5*7.4*41~15020,300.65~8

BPAL

Series Pdf

Ferrite SMD Shielded Type

SeriesDimensions L*W*T(mm)Inductance(uH)Tolerance(±%)Rated Current(A)
BPAL_0606306.3*6.2*31~33020,300.18~3.8
BPAL_0606456.2*6*4.51~220020,300.08~4.8
BPAL_0808457.5*7.5*4.51.5~33020,300.55~8

BPAS

Series Pdf

Ferrite SMD Shielded Type

SeriesDimensions L*W*T(mm)Inductance(uH)Tolerance(±%)Rated Current(A)
BPAS_0808457.5*7.5*4.51~15020,300.69~8.5

BPSY

Series Pdf

Ferrite SMD Shielded Type

SeriesDimensions L*W*T(mm)Inductance(uH)Tolerance(±%)Rated Current(A)
BPSY_13095112.95*9.4*5.081~1000200.17~5
BPSY_19157618.54*15.24*7.6210~1000200.53~3.9

BPSL

Series Pdf

Ferrite SMD Unshielded Type

SeriesDimensions L*W*T(mm)Inductance(uH)Tolerance(±%)Rated Current(A)
BPSL_13095212.95*9.4*5.211~1500200.2~6.8
BPSL_13106413.21*9.91*6.350.33~100200.95~16
BPSL_19157118.54*15.24*7.111~1000200.56~10
BPSL_0906508.89*6.1*50.33~4720,300.72~8.2
BPSL_13091112.95*9.4*11.433.3~1000200.1~4

BPSD

Series Pdf

Ferrite SMD Unshielded Type

SeriesDimensions L*W*T(mm)Inductance(uH)Tolerance(±%)Rated Current(A)
BPSD_0303153.3*3*1.52.2~22010,200.07~0.79
BPSD_0303213.3*3*2.10.82~27010,20,300.14~2.2
BPSD_0504324.5*4*3.20.15~33010,20,300.15~7.5
BPSD_0605255.8*5.2*2.51~100010,200.05~4.5
BPSD_0605305.8*5.2*31~100010,200.13~4.5
BPSD_0605455.8*5.2*4.51.8~100010,200.03~3.5
BPSD_0807357.8*7*3.52.2~56010,200.14~3.2
BPSD_0807507.8*7*51.4~100010,200.19~3.7
BPSD_10094010*9*43.3~56010,200.32~4.5
BPSD_10095410*9*5.43.3~100010,200.2~4.5
BPSD_10096510*9*6.522~820010,200.2~3.8

BFSI

Series Pdf

Closed Magnetic Circuit Type
Molding Processing & for Ultra High Current

SeriesDimensions L*W*T(mm)Inductance(uH)Tolerance(±%)Rated Current(A)
BFSI_0909089.3*9*8.10.68~102010~36
BFSI_12110912*11*8.80.47~152011~50

BPSG

Series Pdf

Hight Current Type

SeriesDimensions L*W*T(mm)Inductance(uH)Tolerance(±%)Rated Current(A)
BPSG_11087011*7.5*70.12~0.41521~37

BPSW

Series Pdf

Hight Current Type

SeriesDimensions L*W*T(mm)Inductance(uH)Tolerance(±%)Rated Current(A)
BPSW_10087310.2*8*7.30.15~0.410,1525~56

BPSP

Series Pdf

Hight Current Type

SeriesDimensions L*W*T(mm)Inductance(uH)Tolerance(±%)Rated Current(A)
BPSP_13135512.6*12.7*5.451~2.7109~9.5
BPSP_19091119*9*10.6722030

BPMI

Series Pdf

Hight Current Type

SeriesDimensions L*W*T(mm)Inductance(uH)Tolerance(±%)Rated Current(A)
BPMI_0707507*7*4.960.072~0.2210,20,3020~31
BPMI_0906809.4*6.2*80.1~0.310,15,2032.5~51
BPMI_10075010.2*7*4.960.085~0.2215,20,3025~31
BPMI_10086510.41*8*6.50.12~0.615,2012~40
BPMI_10086810.2*7.8*6.80.12~0.310,15,2032~54
BPMI_10087410.31*7.65*7.40.115~0.315,2032~41
BPMI_11077811*7.2*7.80.07~0.5110,15,2017~48
BPMI_11119011.2*11.2*90.225~0.4715,20,3030~35
BPMI_0404404*4*40.022~0.115,20,3017~28
BPMI_0505665*5*6.60.05~0.1115,20,3031~53
BPMI_0606805.7*5.7*80.032~0.210,15,20,3022~50

BPMV

Series Pdf

Hight Current Type

SeriesDimensions L*W*T(mm)Inductance(uH)Tolerance(±%)Rated Current(A)
BPMV_1006909.6*6.45*90.09~0.310,15,2033~66
BPMV_10061210*6*120.1~0.3310,15,2026~77
BPMV_10071010*7*100.1~0.331543~68
BPMV_11081210.7*7.5*120.15~0.610,15,2024.5~75
BPMV_0707956.5*6.6*9.50.210,1528
BPMV_0707966.5*6.5*9.60.4~110,15,2011~28
BPMV_0808127.6*8.1*120.12~0.3210,15,2037~60

BPED

Series Pdf

Hight Current Type

SeriesDimensions L*W*T(mm)Inductance(uH)Tolerance(±%)Rated Current(A)
BPED_100424NEW10*3.8*2.40.0810,15,2080

CPUS

Series Pdf

Lead RF Choke

SeriesDimensions L*W*T(mm)Inductance(uH)Tolerance(±%)Rated Current(A)
CPUS08078.8*8.4*7.50.3~3.3205~16
CPUS100911.3*10.4*9.70.22~10205~22
CPUS121012.3*11.7*100.22~10206~37

BP3Y

Series Pdf

Closed Magnetic Circuit Type
Molding Processing & for Ultra High Current

SeriesDimensions L*W*T(mm)Inductance(uH)Tolerance(±%)Rated Current(A)
BP3Y_15151015*15.7*10.51~222014~44
BP3Y_15151115*15.7*11.527~332010~11
BP3Y_15151315*15.7*13.547~68207~9
BP3Y_28281629.5*29.5*163.3~472018~58

BFDI

Series Pdf

Dip Molding Choke - Ultra High Current

CPUD

Series Pdf

CPU Choke - Ultra High Current

SL Series - Customized Part

Series Pdf

Leaded Choke Coil

TD Series - Customized Part

Series Pdf

Leaded Choke Coil

TC Series - Customized Part

Series Pdf

Leaded Choke Coil

AL0204

Series Pdf

Lead RF Choke

AL0307

Series Pdf

Lead RF Choke

AL0410

Series Pdf

Lead RF Choke

AL0510

Series Pdf

Lead RF Choke


相关阅读

村田贴片电感供应商

高频电感哪家好供货商

功率电感哪家好供货商有现货吗？

差模电感哪家好供货商

线艺电感现货供应，信昌电感代理商

村田电感代理商

大功率线绕电阻器供应商

优质充电设备电容供应商

贴片电感供应商

工字电感供应商

电感供应商

优质电容器供应商

原装高压电容器供应商大量现货供应

电感供应商公司都有哪些？

供应高端的固态电容三和SAMWHA代理商

供应固态电容，固态电容代理商有哪些？

电感器功能用途都有哪些？

手机产品中都有哪些贴片电感的应用？

薄膜电阻与厚膜电阻都有什么区别？

片式电感器的优点和特点

深圳市相信过程科技有限公司❤李经理❤欢迎您的咨询
